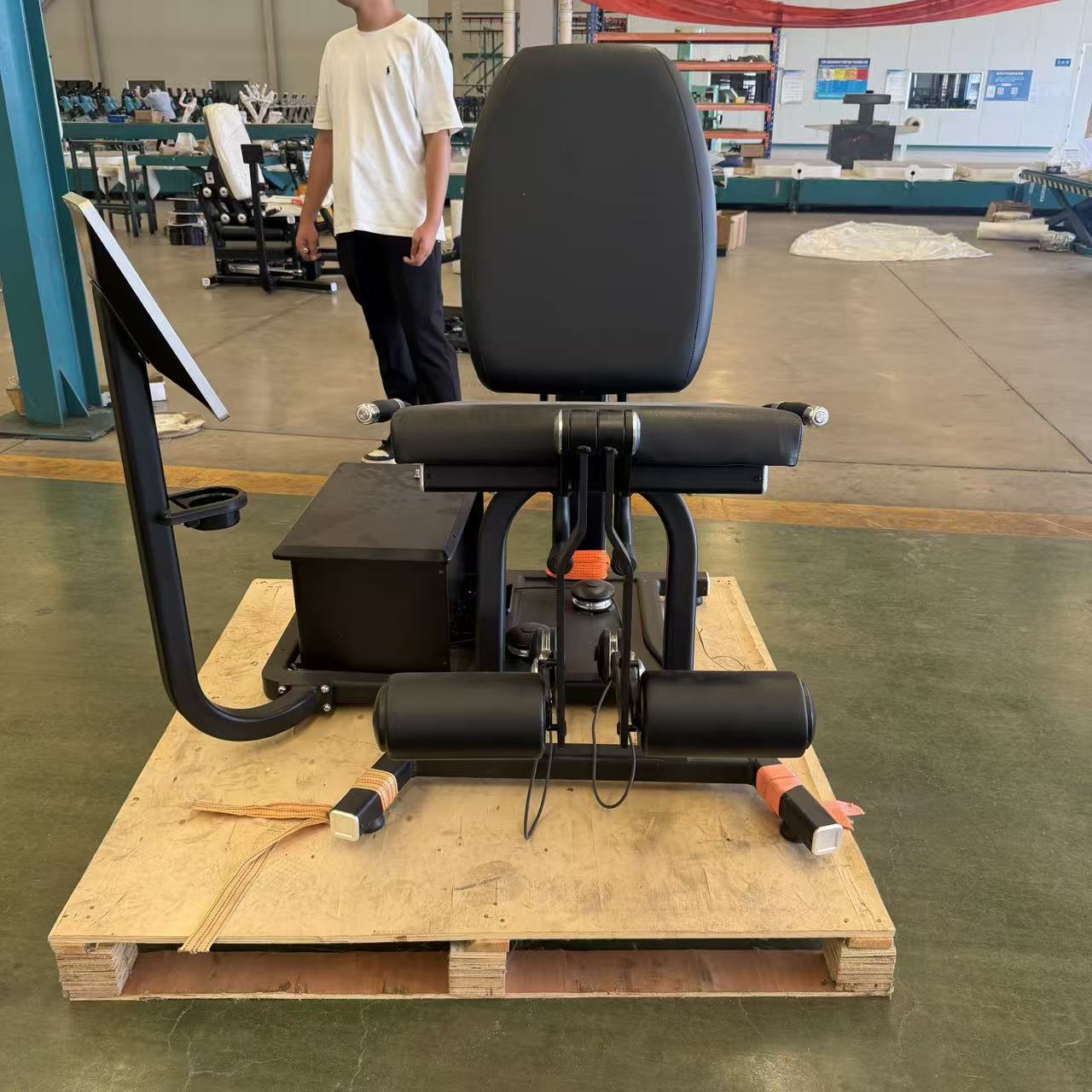

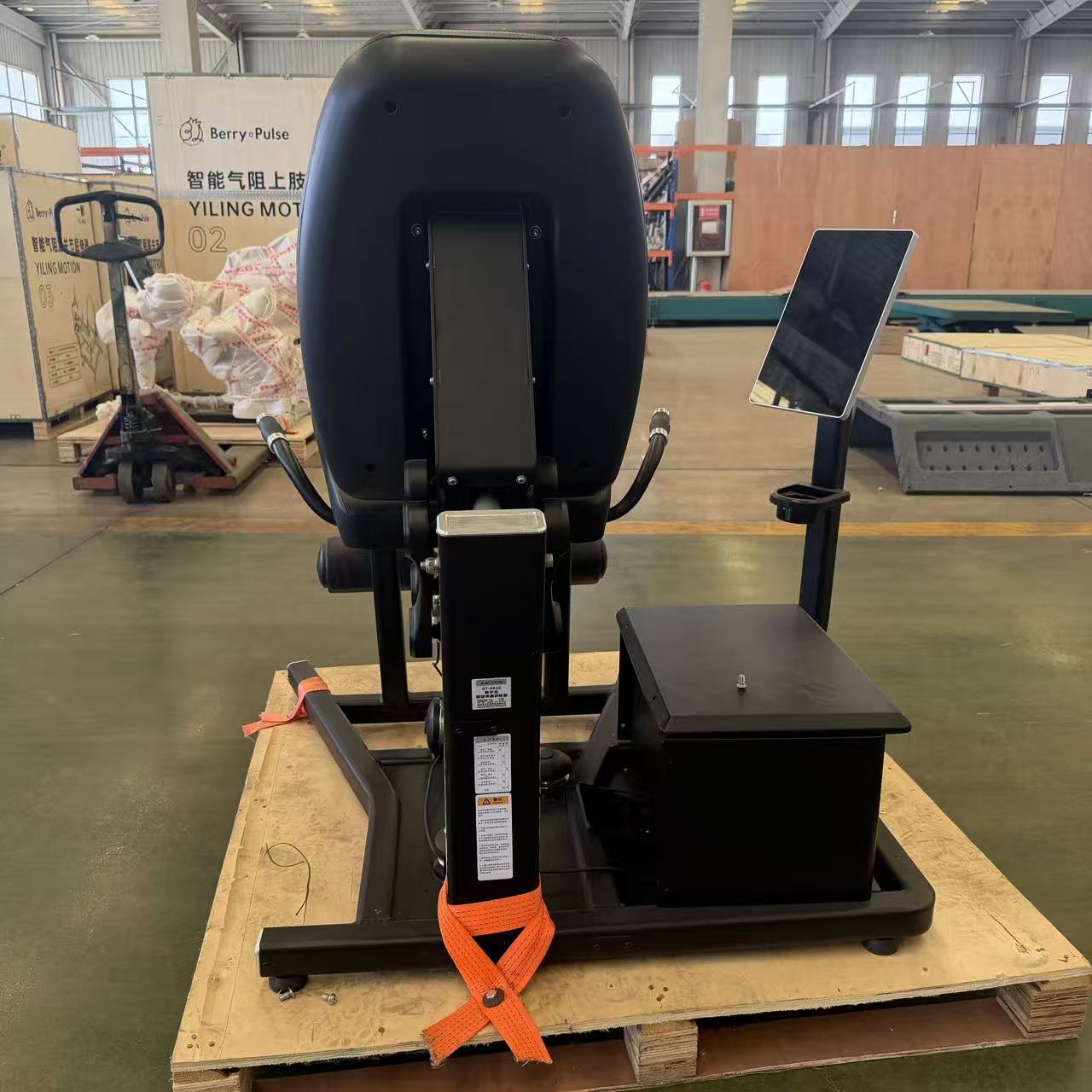

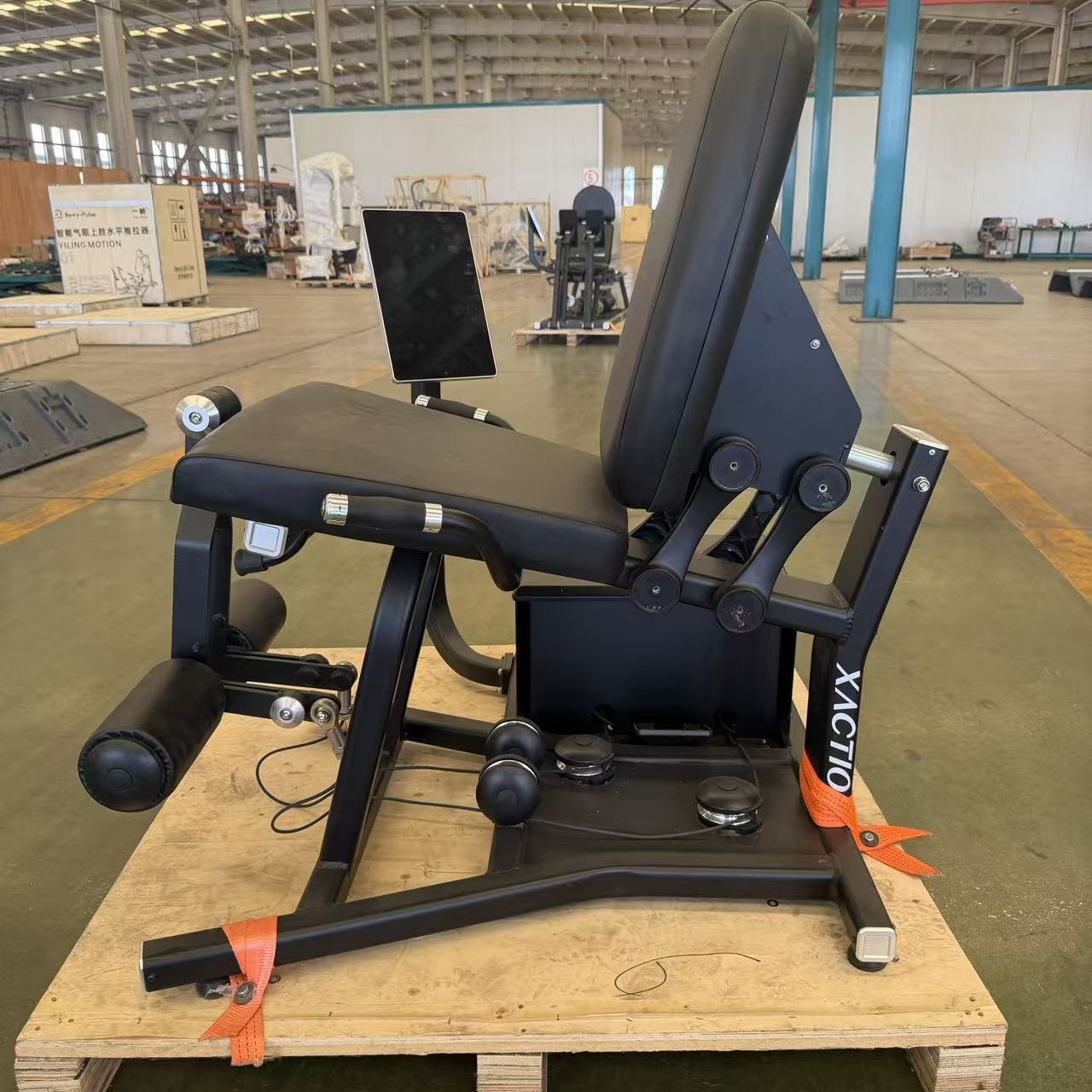

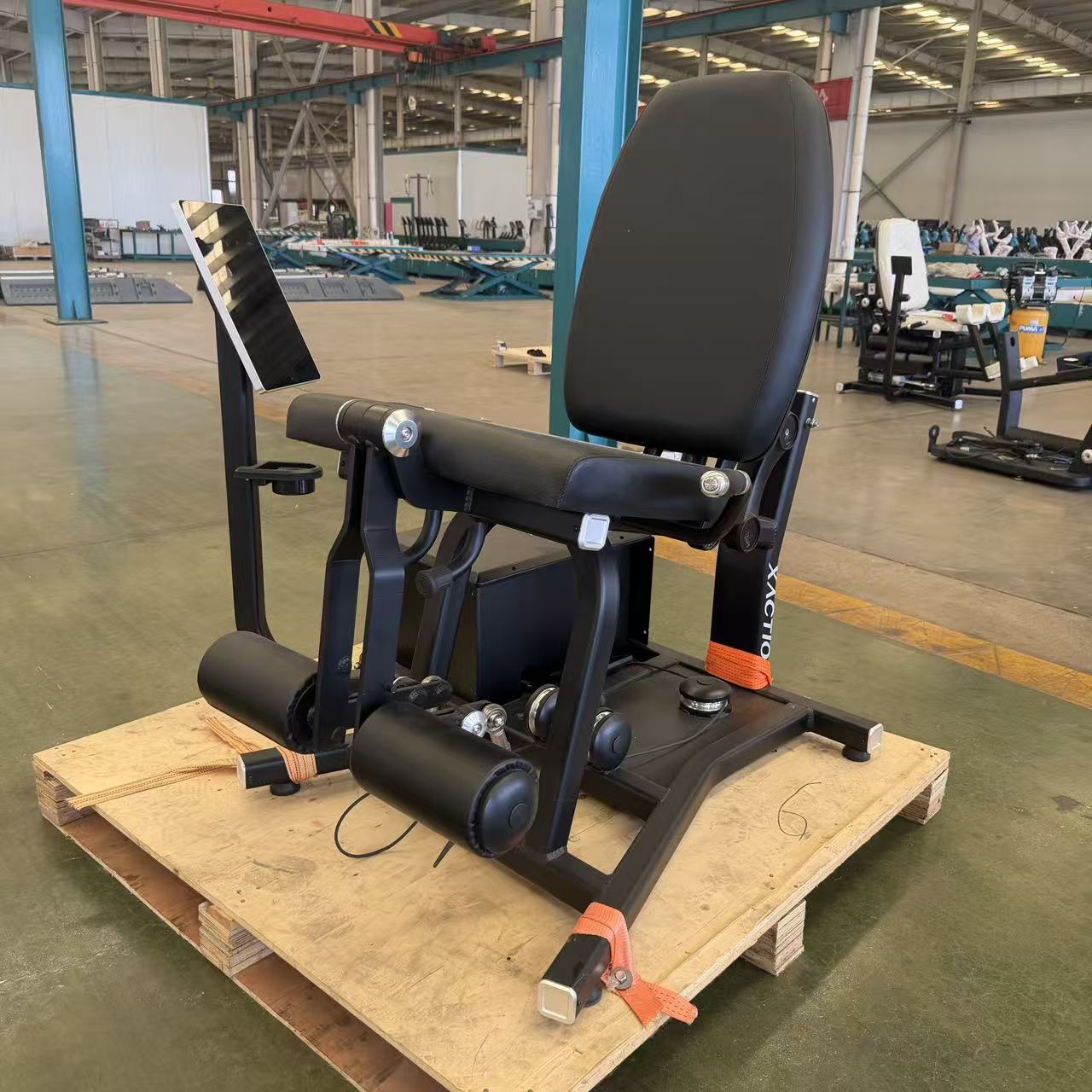

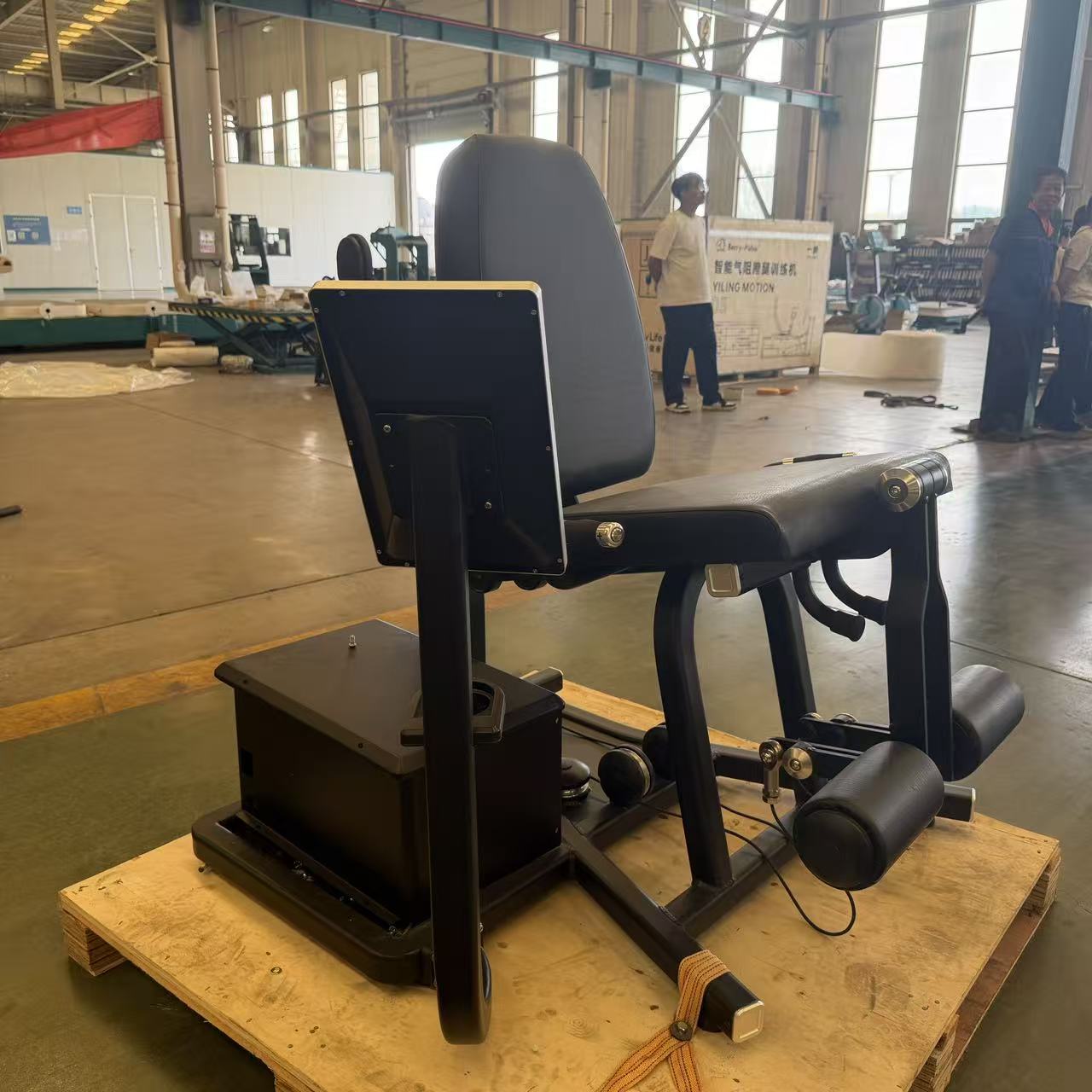

GT-6610 Digital Leg Extension Trainer

1. GT-6610 Digital Leg Extension Trainer adopts digital resistance control system. It delivers controllable resistance training for leg muscle groups, ideal equipment for strength training and rehabilitation exercise.

✅ Key Advantages

1. Digital Resistance System: Adjustable resistance from 5 to 100KG, stable output, suitable for progressive training.
2. 13.3" TFT Color Touch Screen: Supports face recognition and handgrip resistance adjustment. Connected with Mini Program 5.0 for data management.
3. Electric Height Adjustment: Lifting motor with 150mm stroke, 220V 25W, easy to adjust for different users.
4. Heavy-duty Steel Frame: Q235 carbon steel frame with shot blasting and electrostatic powder coating, anti-corrosion and long service life.
5. High Load Capacity: Max user weight up to 150KG, robust structure for commercial use.

📋 Specifications

1. Model: GT-6610
2. Name: Digital Leg Extension Trainer
3. Version: A
4. Date: 2025.7.17
5. Dimension: 1110×1424×1388 mm
6. Max User Weight: 150 KG
7. Moving Method: Non-mobile
8. Packing: Integrated Packing
9. Rear Upright Tube: 50×120 large R tube, t3.0mm
10. Bottom Horizontal Tube: 50×50 large R tube, t2.5mm
11. Front Bottom Tube: 50×50 large R tube, t2.5mm
12. Main Motor: 220V, 2000W
13. Lifting Motor: 220V, 25W, stroke 150mm
14. Resistance Range: 5-100KG
15. Screen: 13.3" TFT color touch screen, face recognition, handgrip resistance adjustment, Mini Program 5.0
16. Surface Treatment: Shot blasting + electrostatic powder coating
17. Main Material: Q235 carbon steel

🎯 Application & Training Purpose

1. Designed for leg extension training, focusing on leg muscle groups.
2. Suitable for gym strength training, sports rehabilitation and physical conditioning.
3. Widely used in commercial gyms, rehabilitation centers, sports training institutions.

English FAQ

Q1: Which muscles does this machine train? A: Primary: Quadriceps. Secondary: Hip muscles. It focuses on leg extension training to strengthen the front thigh muscles, ideal for leg strength improvement, lower limb rehabilitation and posture correction.

Q2: What resistance type? What is the adjustment range? A: Electromagnetic resistance. Adjustable resistance range: 5–100KG, one-touch to increase or decrease resistance.

Q3: Machine dimension & max user weight capacity? A: Dimension: 1110×1424×1388 mm. Max user weight: 150KG.

Q4: Frame material and tubing specification? A: Main material: Q235 carbon steel. Rear vertical tube:50×120 large R tube t3.0mm; bottom cross tube & front base tube:50×50 large R tube t2.5mm. Surface treatment: shot blasting + electrostatic powder coating.

Q5: Motor specifications? A: Main motor:220V 2000W. Lifting motor: stroke 150mm, 220V 25W.

Q6: Functions of digital system? A: 13.3-inch TFT color touch screen, facial recognition, handgrip real-time resistance adjustment. Matched with 5.0 smart mini-program to automatically record training data.

Q7: Movement & packing method? A: No moving wheels. Packing: whole unit packing.

Q8: Assembly difficulty? How many people needed? A: Integrated pre-assembled machine, no on-site assembly required. Two people recommended for handling and placement.

Q9: Application scenarios? A: Public community fitness, university gym, rehabilitation center, commercial gym, high-end personal training studio.

Q10: Can color be customized? A: Yes, color reference to color scheme sheet.

Q11: Power supply requirement? A: 220V AC power.
