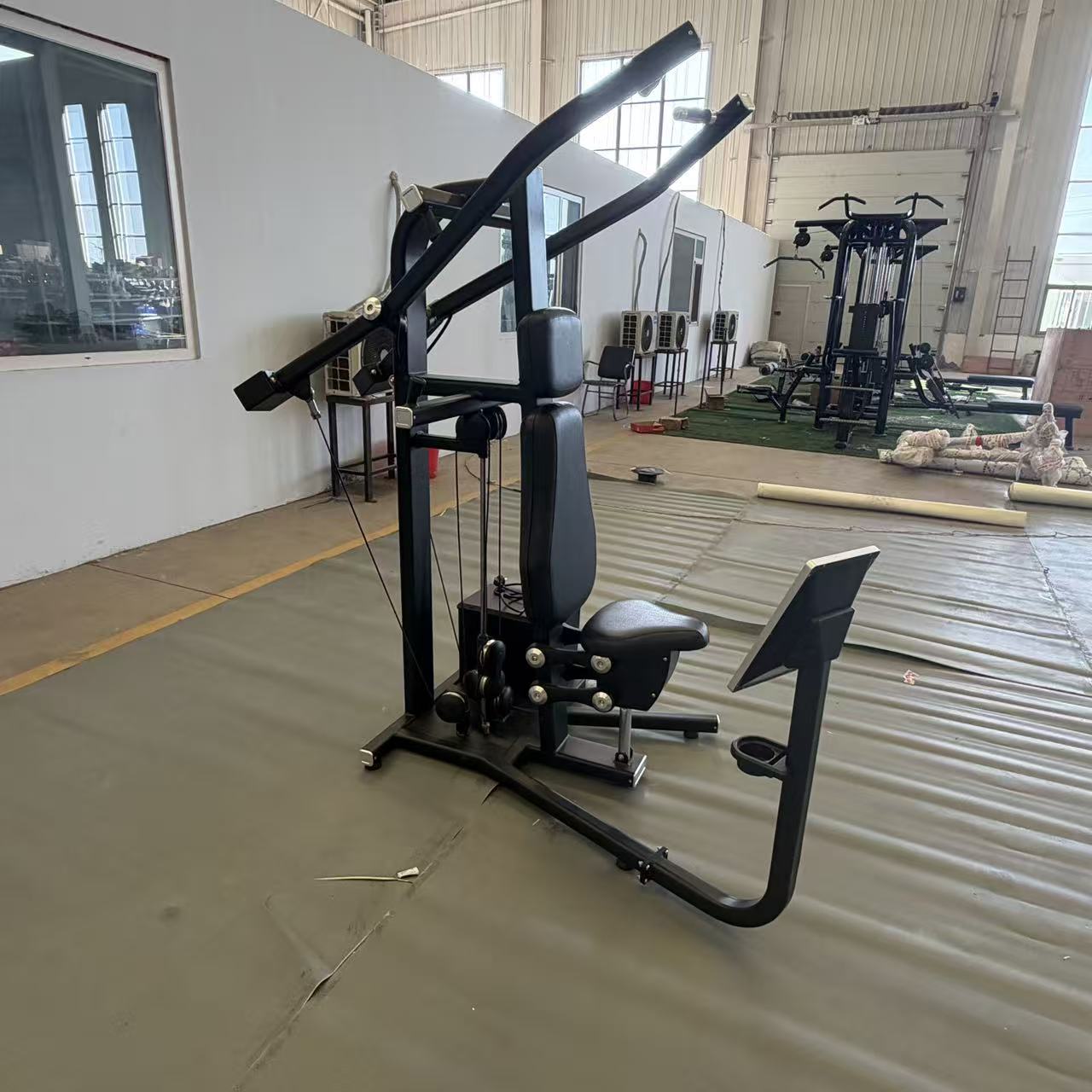

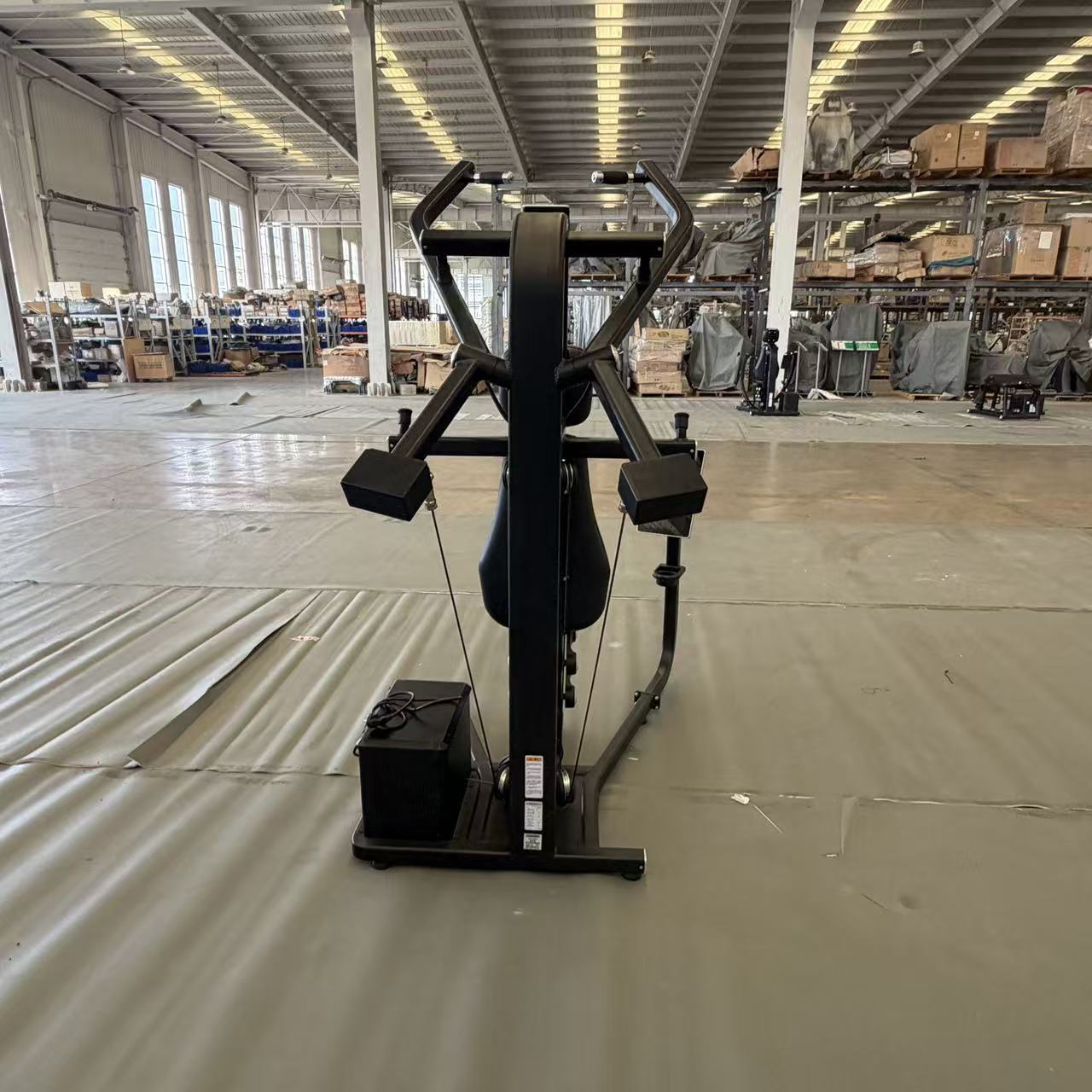

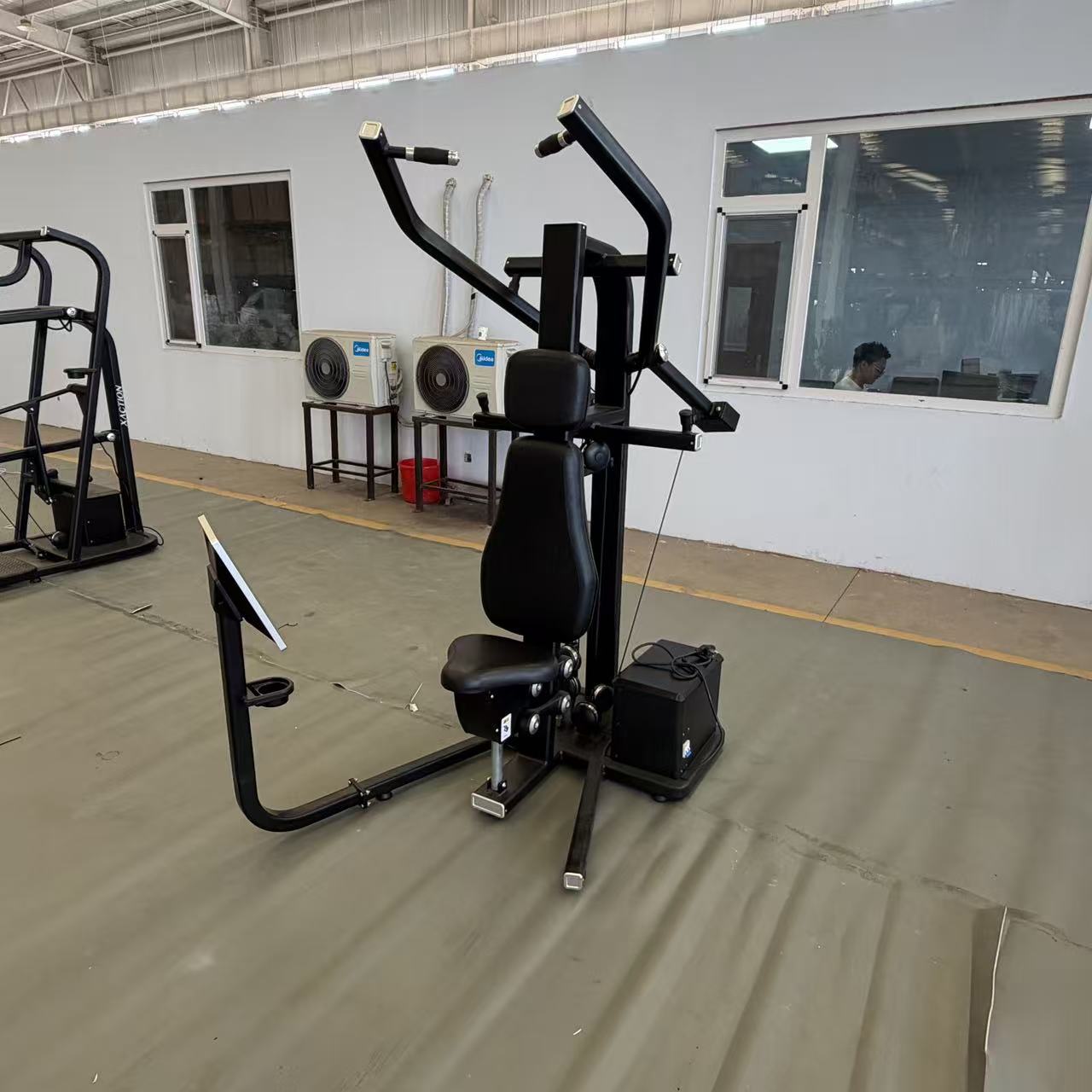

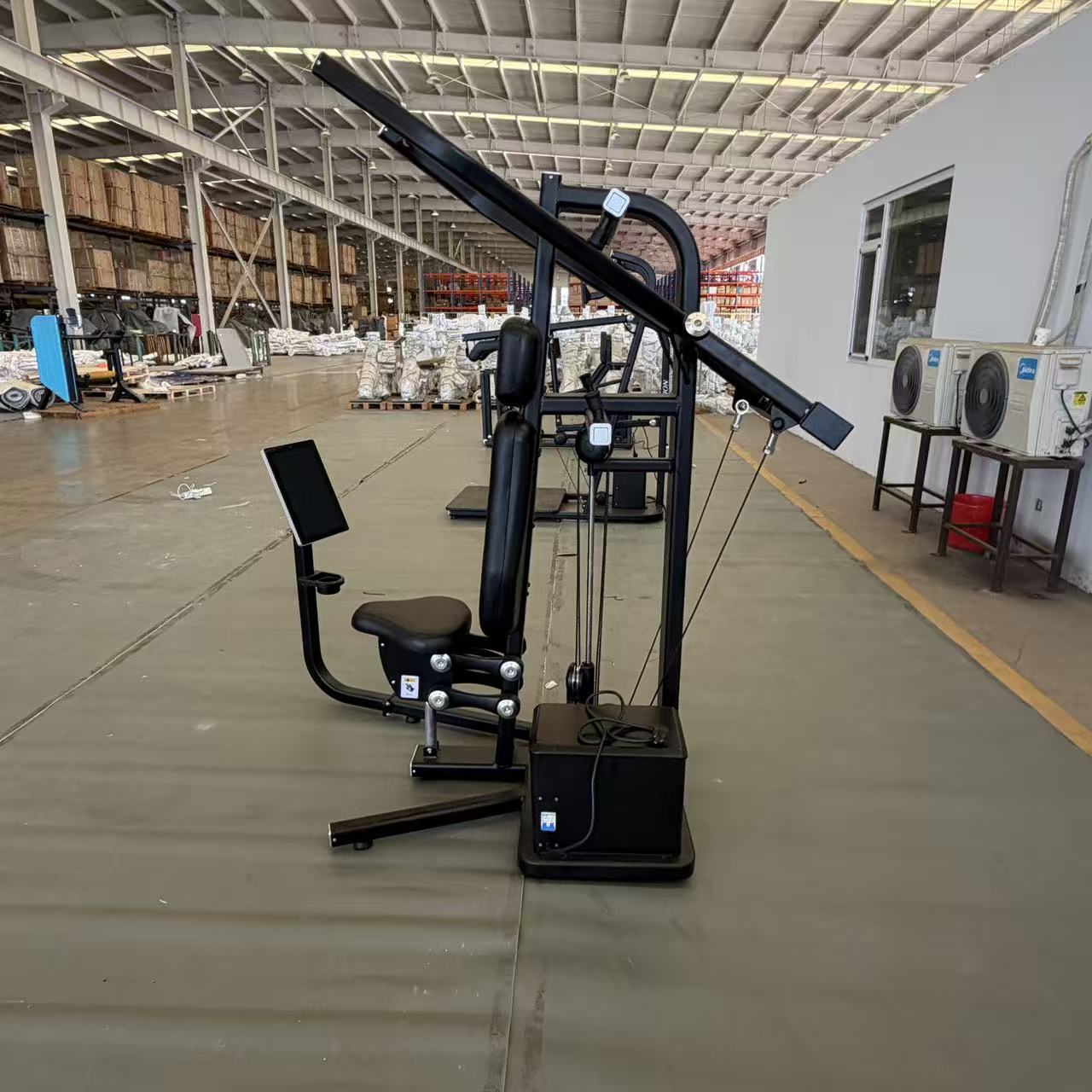

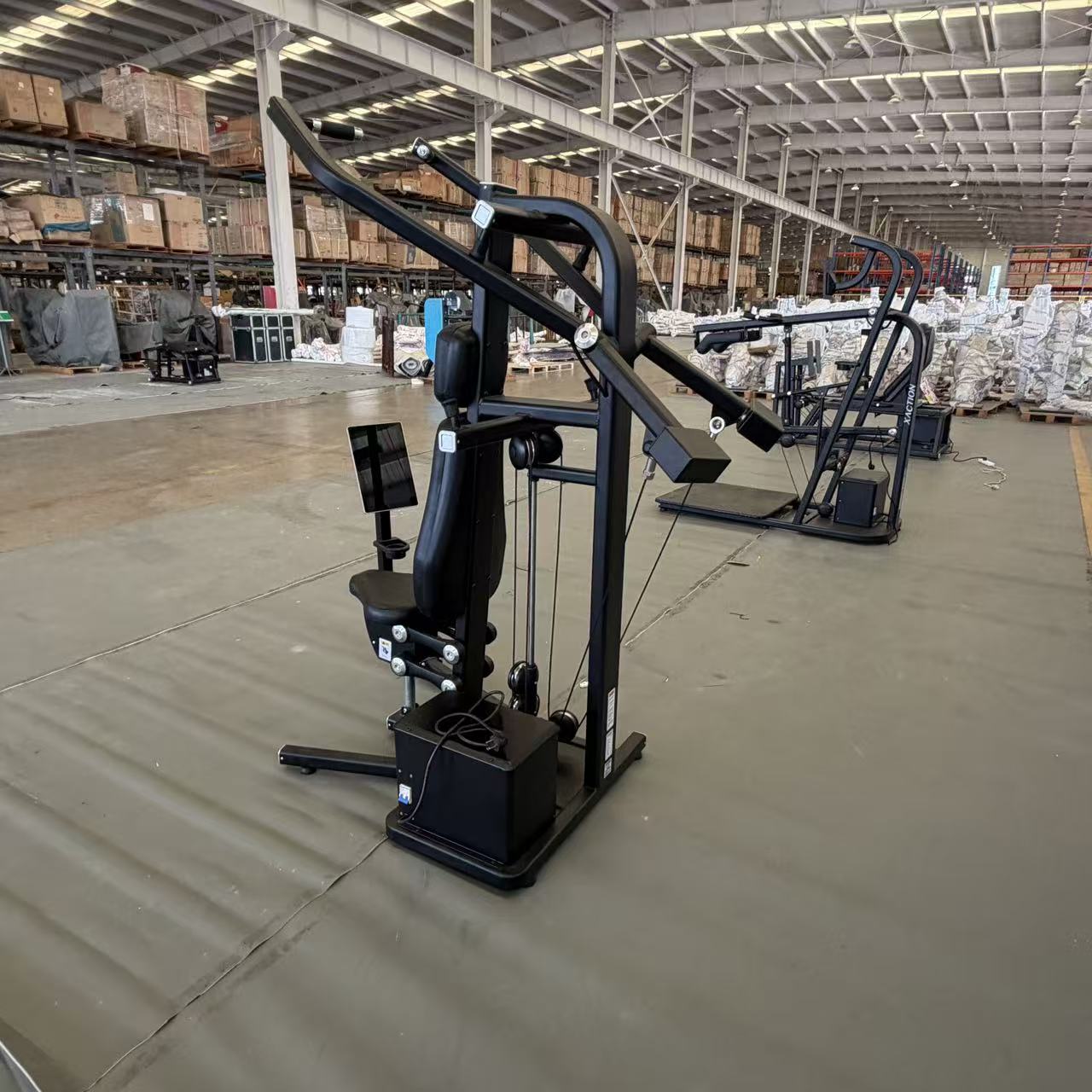

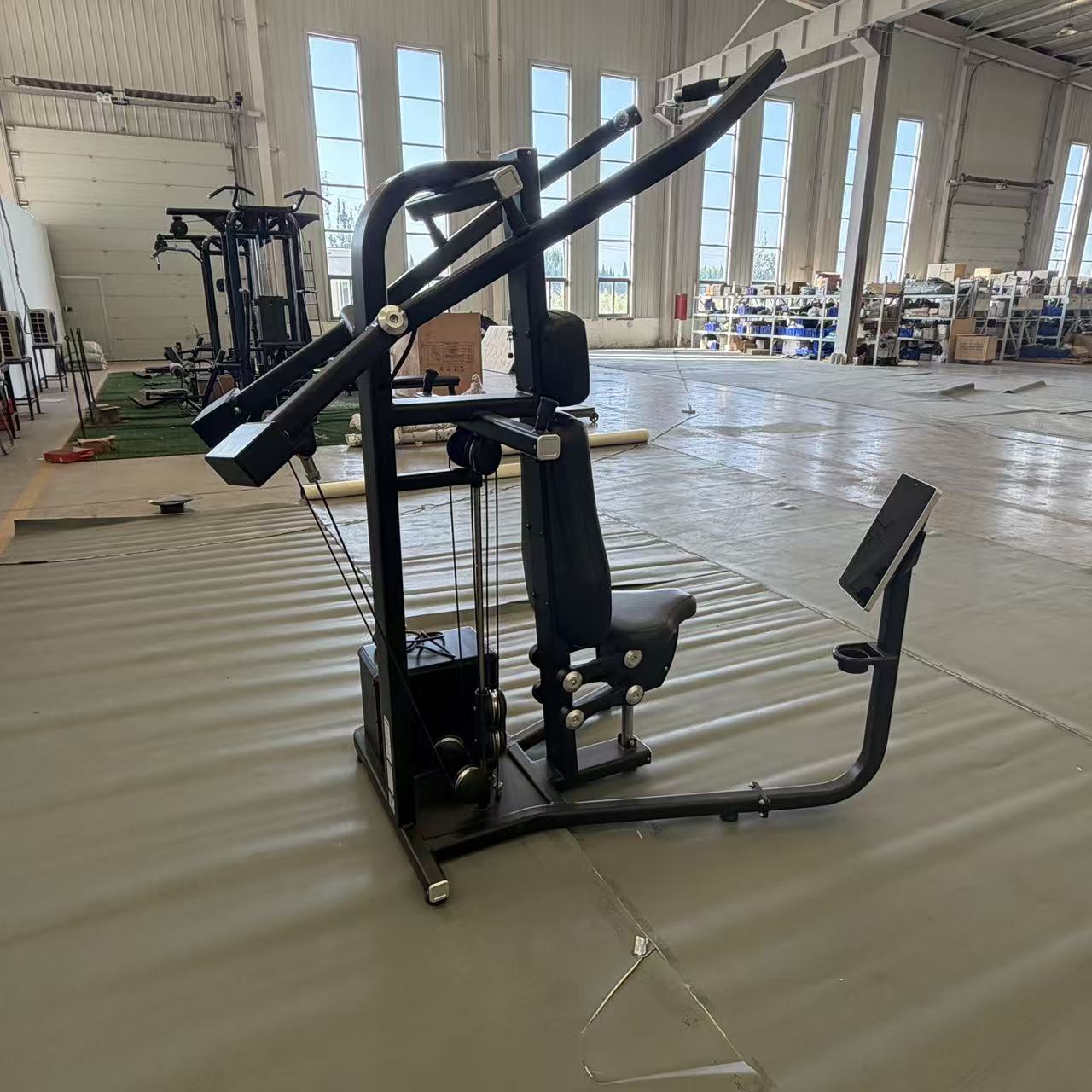

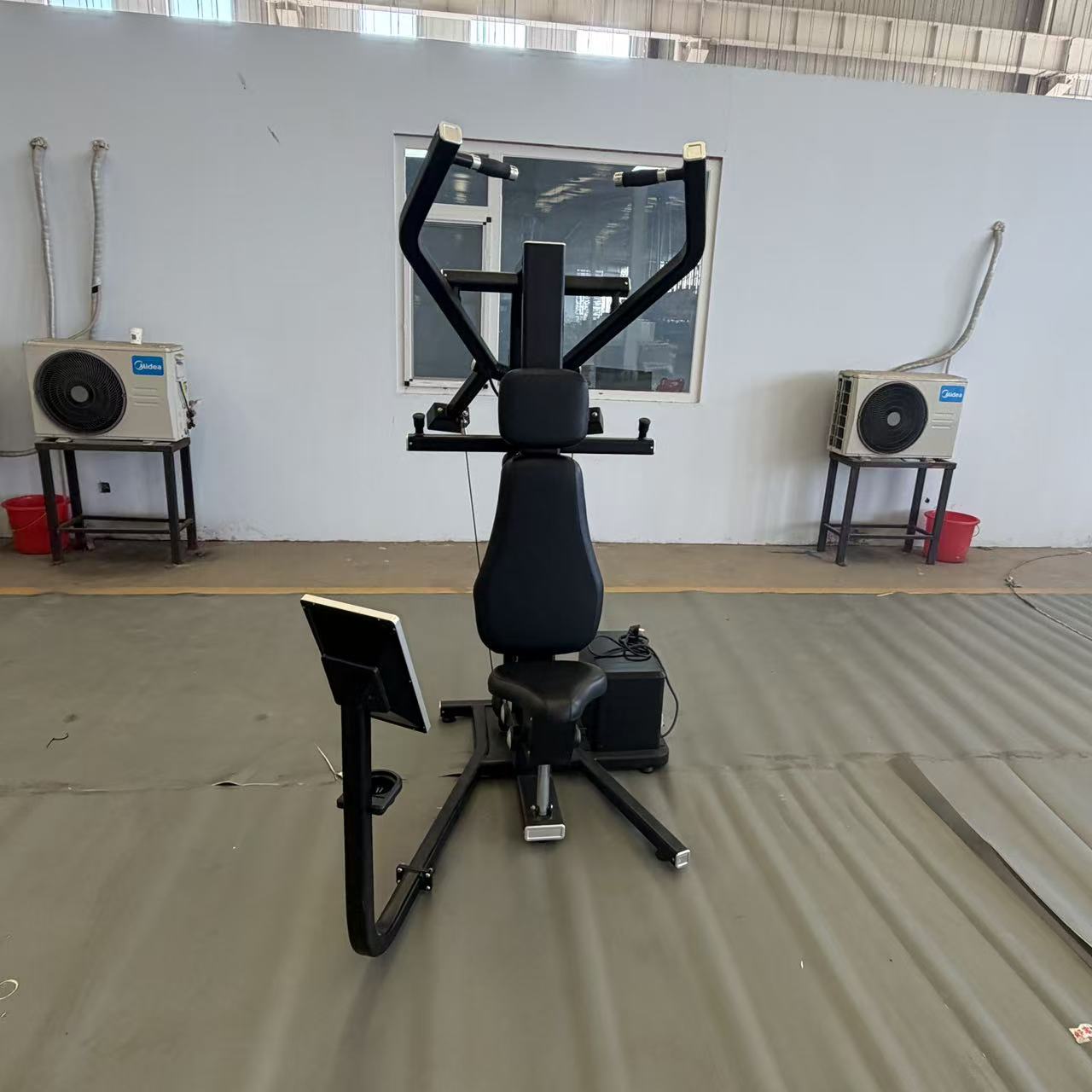

GT-6603 Digital Seated High Pull Trainer

GT-6603 Digital Seated High Pull Trainer The GT-6603 Digital Seated High Pull Trainer is equipped with a digital resistance control system, providing controlled resistance training for upper body and shoulder muscle groups. It is an ideal device for strength training and rehabilitation exercise.

✅ Core Advantages

1. Digital Resistance System: Resistance adjustment range is 5–100KG with stable output. It supports resistance increase and decrease, suitable for step-by-step training.
2. 13.3-inch TFT Color Touch Screen: Supports face recognition and hand-held resistance adjustment. It is matched with Mini Program 5.0 for data management.
3. Electric Height Adjustment: The lifting motor has a stroke of 150mm, 220V 25W, which can adapt to users of different heights.
4. Heavy-duty Steel Frame: Q235 carbon steel frame with shot blasting + electrostatic powder coating process, anti-corrosion and durable.
5. High Load Capacity: The maximum user weight reaches 150KG. With stable structure, it is suitable for commercial scenarios.

📋 Technical Parameters

1. Model: GT-6603
2. Product Name: Digital Seated High Pull Trainer
3. Overall Dimension: 1210×1732×1718 mm
4. Max User Weight: 150 KG
5. Main Motor: 220V, 2000W
6. Lifting Motor: 220V, 25W, stroke 150mm
7. Resistance Range: 5–100KG
8. Screen: 13.3-inch TFT color touch screen, face recognition, hand-held resistance adjustment, Mini Program 5.0
9. Surface Treatment: Shot blasting + electrostatic powder coating
10. Main Material: Q235 carbon steel

🎯 Application & Training Purpose

1. Used for seated high pull training to exercise upper limbs, shoulders and back muscle groups.
2. Suitable for gym strength training, sports rehabilitation and physical training.
3. Widely applied in commercial gyms, rehabilitation centers and sports training institutions.

FAQ English

Q1: Which muscles does this machine train? A: Primary: Latissimus dorsi. Secondary: Teres major, rhomboids, biceps brachii, posterior deltoids. It targets upper limbs, shoulders and back muscles.

Q2: What resistance type? What is the adjustment range? A: Electromagnetic resistance. Adjustable resistance range: 5–100KG, with resistance increase/decrease function.

Q3: Machine dimension & max user weight capacity? A: Dimension:1210×1732×1718 mm. Max user weight:150KG.

Q4: Frame material and tubing specification? A: Main material: Q235 carbon steel. Backrest tube:50×120 large R tube t3.0mm; rear vertical tube:50×120 large R tube t3.0mm; arm swing tube:50×50 large R tube t2.5mm. Surface treatment: shot blasting + electrostatic powder coating.

Q5: Motor specifications? A: Main motor:220V 2000W. Lifting motor: stroke 150mm, 220V 25W.

Q6: Functions of digital system? A: 13.3-inch TFT color touch screen, facial recognition, hand grip resistance adjustment, mini-program V5.0.

Q7: Movement & packing method? A: No moving wheels. Packing: whole unit packing.

Q8: Assembly difficulty? How many people needed? A: With installation manual and full fastener set. Recommended two people for installation.

Q9: Application scenarios? A: Public community fitness, university gym, rehabilitation center, commercial fitness club.

Q10: Can color be customized? A: Yes, color reference to color scheme sheet.

Q11: Power supply requirement? A: 220V AC power.
